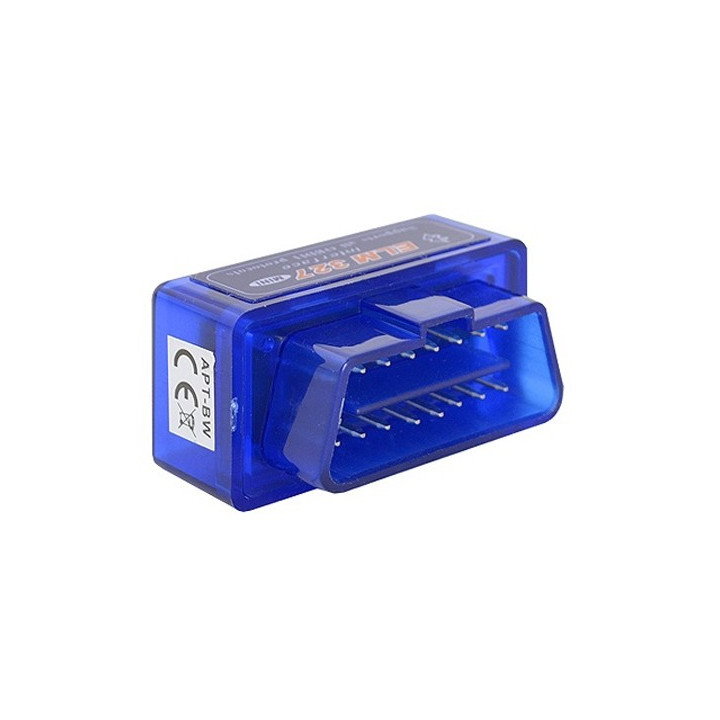

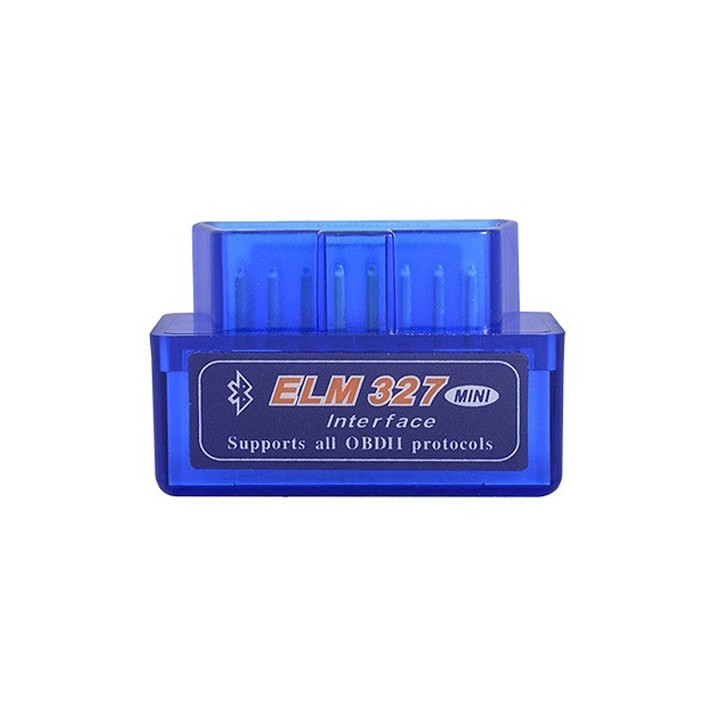

Auto Diagnostics ELM327 OBD II BLUETOOTH universal ELM327OBDIIBLUETOOTH

Auto Diagnostics ELM327 OBD II BLUETOOTH universal
allows wireless transmission to read diagnostic trouble codes and display their meanings, more than 3,000 codes in the database. Read yourself anytime error codes your car with this diagnosis! The ODB II unit works without problems, for example, on most French cars, but does not communicate with all cars (especially the concern VW, Skoda, Seat, etc.). ELM327 has the support of all the existing five OBDII standards, thus allowing to diagnose both American and European brands including current CAN-Bus. In the event that this jednostki automatically unite with the control unit is needed in the program TORQUE select the appropriate adapter. At the title screen, click in the lower left corner of the "Menu" → "Settings" → OBD adapter settings → → Choose bluetooth device select the OBD II.

Properties:

- Supported operating systems: Windows 98 / ME / 2000 / XP / Vista / Win 7 / Win 8 / Android / Windows Smartphone

Suitable for:

- European Vehicle (ISO, CAN)
- American vehicles (ISO, VPW, PWM, CAN)
- Group Ford Vehicles (PWM, CAN)
- Asian vehicles (ISO, CAN)
- Reads and clears fault the engine control unit and displays the current date
- Displays current sensor data
- Engine speed, vehicle speed
- The calculated engine load, oxygen sensor
- Coolant temperature, intake air temperature, air flow
- Fuel pressure, intake manifold pressure
- Absolute position of the accelerator pedal
- Voltage lambda probes, fuel system status, and many other features
- Compatible with most diagnostic programs, for example TORQUE (Android) or OBD DOCTOR (Windows Phone)

Supported software:

- Torque
- OBD Doctor
- Scantool.net
- Check Engine
- GM Mode 22 Scan Tool by Terry
- OBD Gauge for PalmOS and Pocket PC by Dana Peters
- OBD Logger by Jonathan Šenkeřík
- OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
- obd2crazy.com
- OBD2 Scantool by Ivan Andrzejewski
- OBDII for ELM322 by David Huffman
- PyOBD would Donour Sizemore for MacOSX and Linux
- RDDTC by Pete Calinski
- Real Scan by Brent Harris
- Scantest for Pocket PC by Ivan Ganev aka a-ser
- WOBD by WDT
- Easy OBD
- DigiMoto
- PCMSCAN

Amount of displayed data may vary according to the type of vehicle diagnosed. Sensor plug into the OBDII port of your vehicle. Turn the key to position 2. Bluetooth manager on your phone / tablet to locate new facilities designated as OBDII. Pair. Pairing code is 1234. For correct operation it is necessary to have installed any of the above applications.
