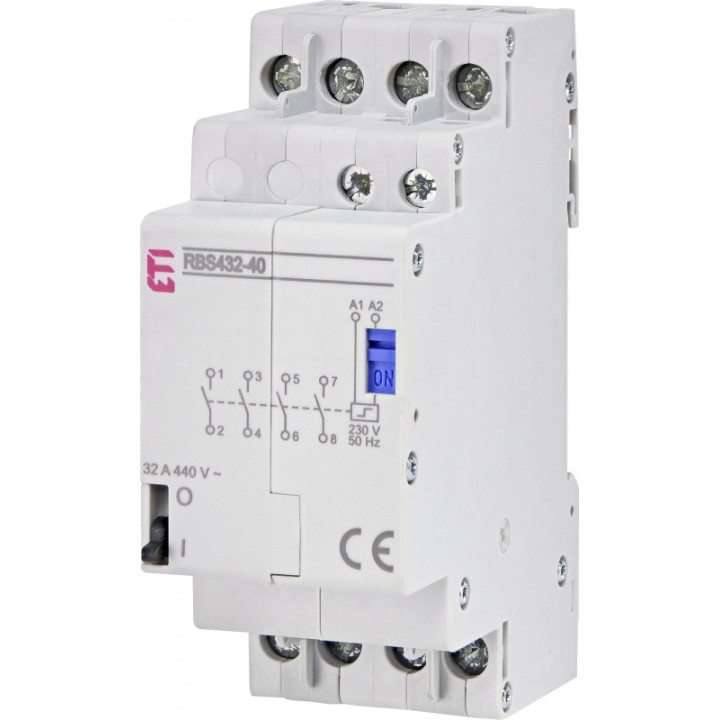

Comutator RBS432-40-230V AC 002464126

Cod ETI002464126
DescriereRBS432-40-230V AC
Denumire clasăComutator
Max. number of impulses per minute7,5
Storage temperature (°C)-30...+80
Max. back-up fuse for short circuit protection32 A gL
Min. impulse duration between two impulses (ms)150
Max. impulse duration at Uc (ms)1 hr
Min. impulse duration at Uc (ms)50
Distance between contacts and coil (mm)>6
Min. distance of open contacts (mm)>3
Max. vibration resistance (g)3
Max. shock resistance (g)15
Resistance to humidity95 % RH @ +55 °C
FuncțieComutator bistabil RBS
Tensiunea de alimentare (V) 230
I (AC1) (A)32
Tipul voltajului AC
Număr contacte NO4
Frecvență nominală (Hz)50/60
Mărime4p, 2-modules
Curent nominal (A)32
Număr de poli4
Terminal screwM4 (main circuit)/M3 (control circuit)
Secțiune transversală nominală1...10
Tightening torque (Nm)1,2
Grad de protecție IPIP20
Temperatura ambientala (°C)-25...+55
Tip montajTH 35
Tensiunea nominala (V AC) 440
Tensiune nominala de izolare (V) 440
Curent termic Ith (A) 32
Numarul de module 2
Lățime (mm)35
Putere disipată (W)12
Mechanical cycles100.000
Electrical cycles10.000
StandardeIEC/EN 60669-2-2
Greutatea produsului0.2 kg
Tarif vamal85364900
logis_net_width35 mm
logis_net_height90 mm
logis_net_depth65 mm
Cantitate48
Greutate10 kg
Cantitate. transport2832
Logistic_Greutatea produsului0.2 kg
Logistic_Tarif vamal85364900
Logistic_logis_net_width35 mm
Logistic_logis_net_height90 mm
Logistic_logis_net_depth65 mm

  • Marca
  • Referinta
    002464126
  • In stoc
    3 Produse
  • cod EAN13
    3838400075345
  • MPN
    002464126

  • Temperatura ambientala (°C)
    -25...+55
  • Storage temperature (°C)
    -30...+80
  • Min. distance of open contacts (mm)
    >3
  • Distance between contacts and coil (mm)
    >6
  • Logistic_Greutatea produsului
    0.2 kg
  • Greutatea produsului
    0.2 kg
  • Cod ETI
    002464126
  • Max. impulse duration at Uc (ms)
    1 hr
  • Tightening torque (Nm)
    1,2
  • Secțiune transversală nominală
    1...10
  • Electrical cycles
    10.000
  • Mechanical cycles
    100.000
  • Putere disipată (W)
    12
  • Max. shock resistance (g)
    15
  • Min. impulse duration between two impulses (ms)
    150
  • Numarul de module
    2
  • Cantitate. transport
    2832
  • Max. vibration resistance (g)
    3
  • Curent termic Ith (A)
    32
  • I (AC1) (A)
    32
  • Max. back-up fuse for short circuit protection
    32 A gL
  • Logistic_logis_net_width
    35 mm
  • logis_net_width
    35 mm
  • Număr contacte NO
    4
  • Tensiune nominala de izolare (V)
    440
  • Tensiunea nominala (V AC)
    440
  • Min. impulse duration at Uc (ms)
    50
  • logis_net_depth
    65 mm
  • Logistic_logis_net_depth
    65 mm
  • Max. number of impulses per minute
    7,5
  • Logistic_Tarif vamal
    85364900
  • logis_net_height
    90 mm
  • Logistic_logis_net_height
    90 mm
  • Resistance to humidity
    95 % RH @ +55 °C
  • Standarde
    IEC/EN 60669-2-2
  • Terminal screw
    M4 (main circuit)/M3 (control circuit)
  • Descriere
    RBS432-40-230V AC
  • Weight
    10 Kg
  • Tensiunea de alimentare (V)
    230
  • Curent nominal (A)
    32 A
  • Tarif vamal
    85364900
  • Tipul voltajului
    AC
  • Denumire clasă
    Comutator
  • Funcție
    Comutator bistabil RBS
  • Culoare carcasa
    alb
  • Frecventa nominala (Hz)
    50/60
  • Cantitate
    48
  • Tip montaj
    TH 35
  • Latime (mm)
    35
  • numar de poli
    4
  • marime
    4p, 2-modules
  • grad de protectie ip
