Safety test lead VOLTCRAFT MS-6

Safety test lead VOLTCRAFT MS-6

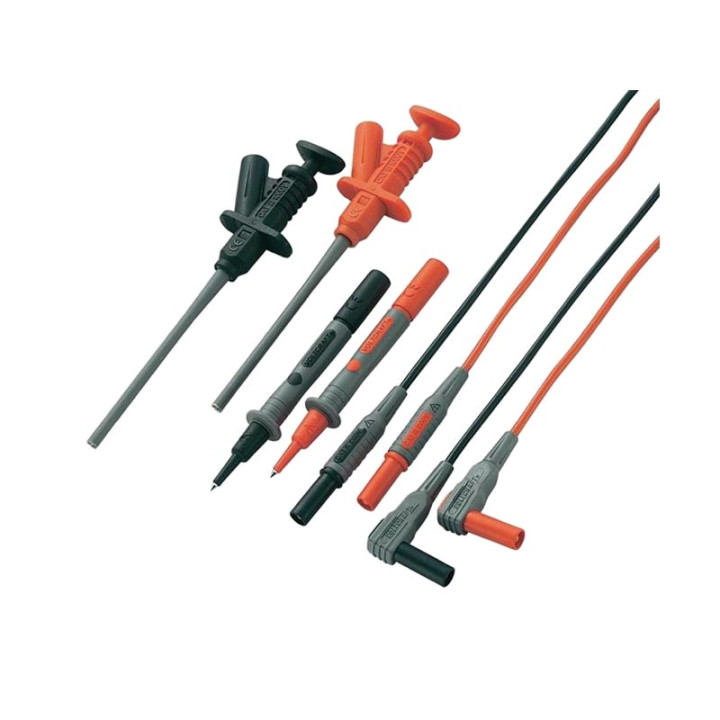

VOLTCRAFT MS-6Safety test lead set with attachable probe tips and aligator clips

Versatile test lead set consisting of 4 mm touch-proof components for use in overvoltage category CAT III 1000 V. Alligator clips suitable for use in overvoltage category II 1000V.

- CAT III 1000 V
- ideal for multimeters
- conforms to the new safety standard EN61010-031: 2008
- PVC cable insulation

Technical specifications:

- colour: black/red
- cable cross section: 1 mm²
- diameter/connector type: each with a 4 mm right-angled safety plug and a straight safety plug
- temperature range: -15 to +70 °C
- nominal voltage: 1000 V
- type A: banana jack 4 mm
- type B: banana jack 4 mm
- plug features: scoop-proof, angled
- nominal current: 10 A
- material: PVC
- cable length: 1.2 m
- category: safety test lead
- reading category: CAT III 1000 V

Included in delivery:

- 1 pair of PVC test leads
- 1 pair of stainless steel probe tips
- 1 pair of alligator clips (5 mm opening span, CAT II 1000 V)
