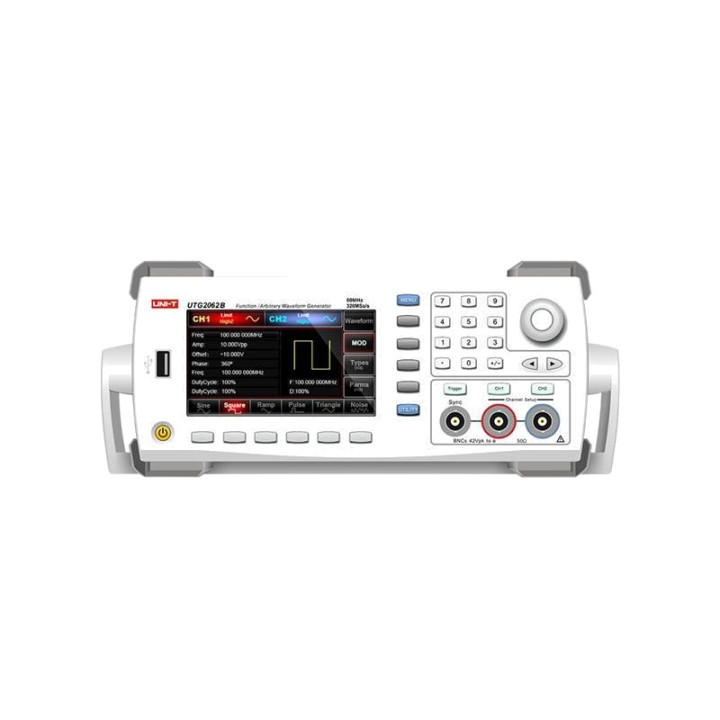

Function Generator UNI-T UTG2062B

Function Generator UNI-T UTG2062B
UNI-T UTG2062B modern generator 60MHz with USB connection

The modern UTG2000B series generator offers 2 channels, sampling rate 320 MS/s, maximum 60 MHz output, and USB connection. Thanks to DDS technology, it is able to generate accurate and stable waveforms with a resolution of up to 1 μHz. It has an excellent price/performance ratio and many features. The output is accurate, stable and clean with minimal distortion. A user-friendly, easy-to-use control panel with a clear display lets you work much more efficiently and quickly.

SPECIFICATION
Channels 2
Sample Rate 320MS/s
Output Frequency 60MHz
Frequency Resolution 1uHz
Vertical Resolution 16 bits
Waveforms Sine, Square, Ramp, Harmonic, Pulse, Noise, DC, Arb
Output Amplitude Range 1mVpp~10Vpp(50Ω), 2mVpp~20Vpp(High Z)
Modulation Types AM, FM, PM, ASK, FSK, PSK, PWM, Sweep
Interfaces USB Device, USB Host, LAN, 10MHz clock source input/output

GENERAL CHARACTERISTICS
Power 100~240 VAC, 50Hz/60Hz
Display 4.3 inches TFT LCD (480x272)
Product Weight 3.2kg
Product Size 265x110x320mm
