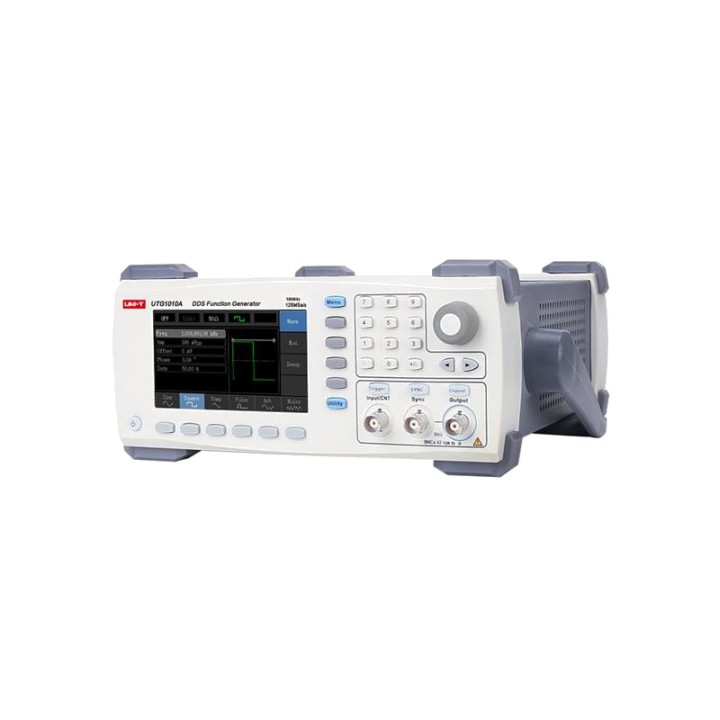

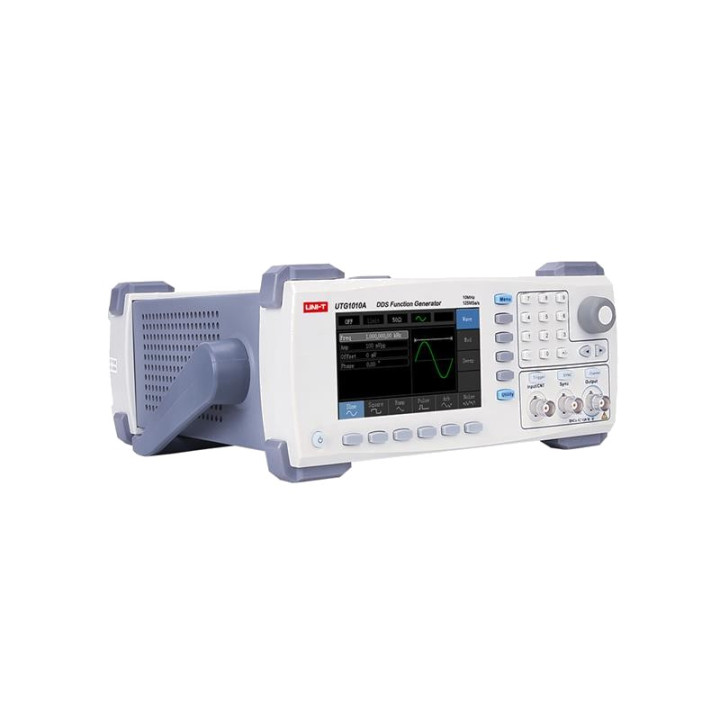

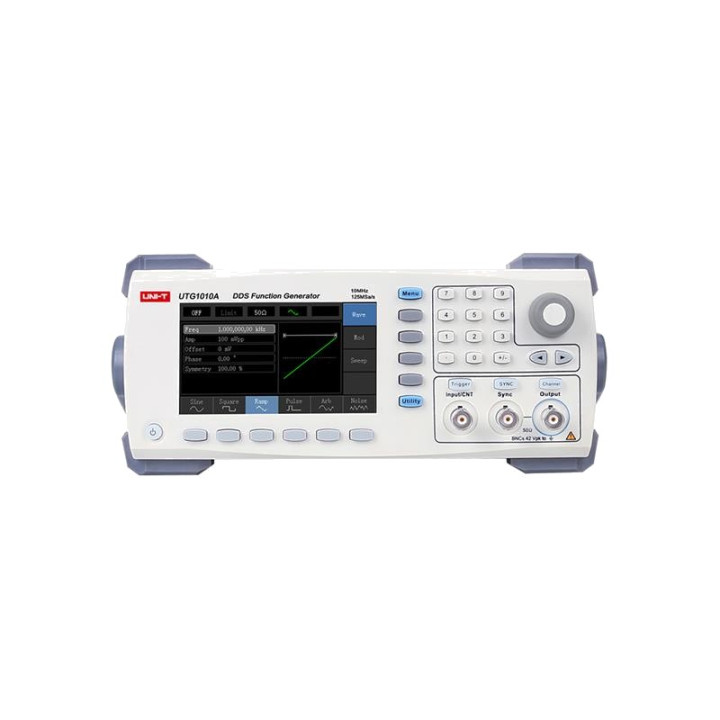

Function Generator UNI-T UTG1010A
The modern UTG1000A series generator offers 1 channel, sampling rate 125 MS/s, maximum 10 MHz output, and USB connection. Thanks to DDS technology, it is able to generate accurate and stable waveforms with a resolution of up to 1 μHz. It has an excellent price/performance ratio and many features. The output is accurate, stable and clean with minimal distortion. A user-friendly, easy-to-use control panel with a clear display lets you work much more efficiently and quickly.
SPECIFICATION:
Channels: 1
Sample Rate: 125MS/s
Output Frequency: 10MHz
Frequency Resolution: 1uHz
Vertical Resolution: 14 bits
Max. Arb. Memory Depth: 8 kpts
Waveforms Sine, Square, Ramp, Triangle, Pulse, Noise, Arb
Output Amplitude Range 1mVpp~10Vpp(50Ω), 2mVpp~20Vpp(High Z)
Modulation Types AM, FM, PM, ASK, FSK, PSK, PWM, Sweep
Interfaces USB Device
Power: 100~240 VAC, 50Hz/60Hz
Display: 4.3 inches TFT LCD (480x272)
Product Weight: 3.1kg
Product Size: 165 x 110 x 320mm
Standart Accessories BNC Cable, Power Cord, USB Cable, PC Software CD
